    Wg Gen Web

    Simple Web based configuration generator for WireGuard

    Simple Web based configuration generator for WireGuard.

    pipeline status Go Report Card Gitlab pipeline status (self-hosted) License: WTFPL Discord Build multi-arch Docker Images via buildx GitHub last commit Docker Pulls GitHub go.mod Go version GitHub code size in bytes

    Why another one ?

    All WireGuard UI implementations are trying to manage the service by applying configurations and creating network rules. This implementation only generates configuration and its up to you to create network rules and apply configuration to WireGuard. For example by monitoring generated directory with inotifywait.

    The goal is to run Wg Gen Web in a container and WireGuard on host system.

    Features

    • Self-hosted and web based
    • Automatically select IP from the netowrk pool assigned to client
    • QR-Code for convenient mobile client configuration
    • Sent email to client with QR-code and client config
    • Enable / Disable client
    • Generation of wg0.conf after any modification
    • Dockerized
    • Pretty cool look

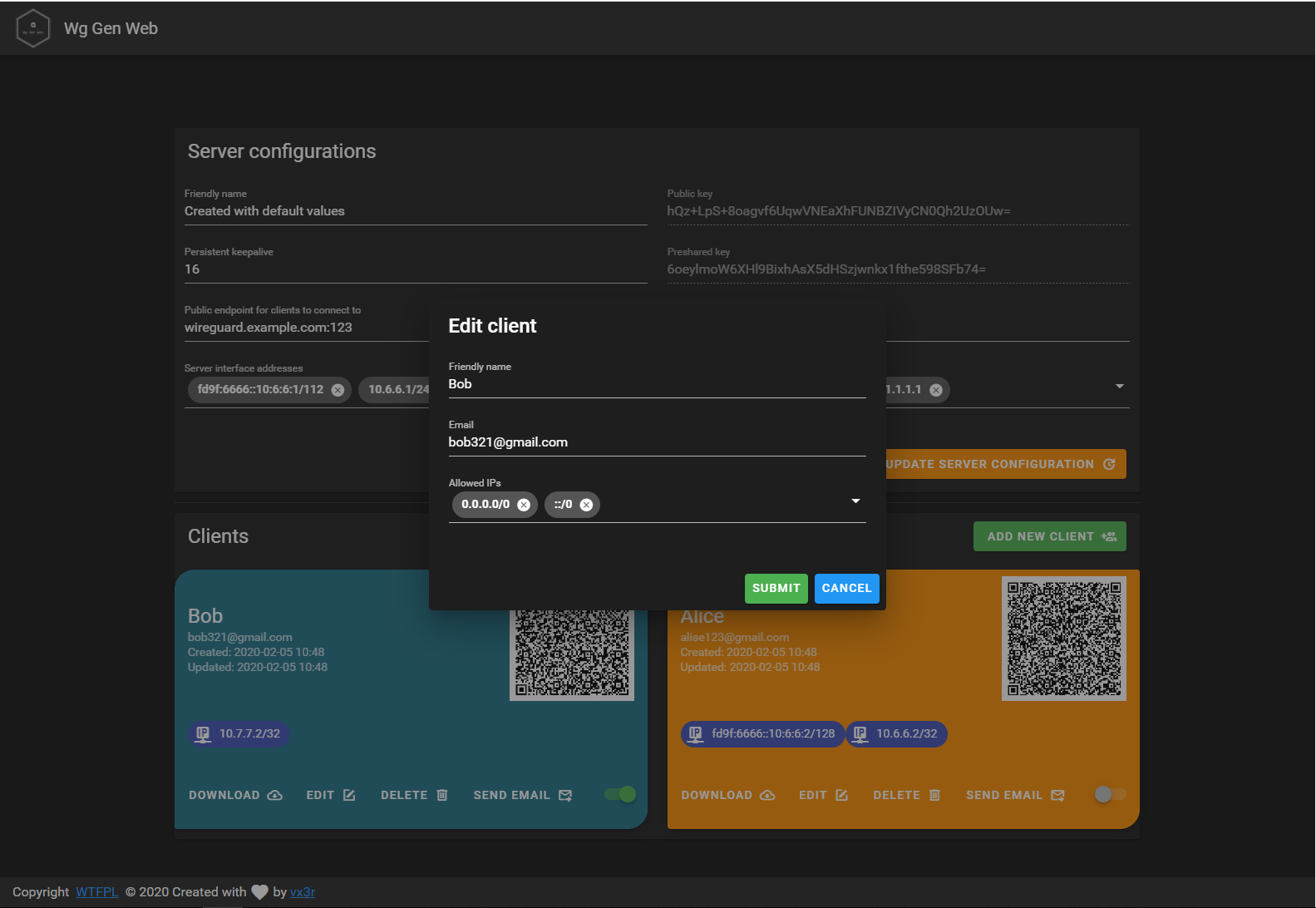

    Screenshot

    Running

    Docker

    The easiest way to run Wg Gen Web is using the container image

    docker run --rm -it -v /tmp/wireguard:/data -p 8080:8080 -e "WG_CONF_DIR=/data" vx3r/wg-gen-web:latest

    Docker compose snippet

    version: '3.6'
    services:
      wg-gen-web:
        image: vx3r/wg-gen-web:latest
        container_name: wg-gen-web
        restart: unless-stopped
        ports:
          - 8080:8080
        environment:
          - WG_CONF_DIR=/data
          - WG_INTERFACE_NAME=wg0.conf
          - SMTP_HOST=smtp.gmail.com
          - SMTP_PORT=587
          - SMTP_USERNAME=account@gmail.com
          - SMTP_PASSWORD="*************"
          - SMTP_FROM=Wg Gen Web <account@gmail.com>
        volumes:
          - /etc/wireguard:/data

    Please note that mapping /etc/wireguard to /data inside the docker, will erase your host's current configuration. If needed, please make sure to backup your files from /etc/wireguard.

    A workaround would be to change the WG_INTERFACE_NAME to something different, as it will create a new interface (wg-auto.conf for example), note that if you do so, you will have to adapt your daemon accordingly.

    Directly without docker

    Fill free to download latest artefacts from my GitLab server:

    Put everything in one directory, create .env file with all configurations and run the backend.

    Automatically apply changes to WireGuard

    Using systemd

    Using systemd.path monitor for directory changes see systemd doc

    # /etc/systemd/system/wg-gen-web.path
    [Unit]
    Description=Watch /etc/wireguard for changes

    [Path]
    PathModified=/etc/wireguard

    [Install]
    WantedBy=multi-user.target

    This .path will activate unit file with the same name

    # /etc/systemd/system/wg-gen-web.service
    [Unit]
    Description=Restart WireGuard
    After=network.target

    [Service]
    Type=oneshot
    ExecStart=/usr/bin/systemctl restart wg-quick@wg0.service

    [Install]
    WantedBy=multi-user.target

    Which will restart WireGuard service

    Using inotifywait

    For any other init system, create a daemon running this script

    #!/bin/sh
    while inotifywait -e modify -e create /etc/wireguard; do
      wg-quick down wg0
      wg-quick up wg0
    done

    How to use with existing WireGuard configuration

    After first run Wg Gen Web will create server.json in data directory with all server informations.

    Feel free to modify this file in order to use your existing keys

    What is out of scope

    • Generation or application of any iptables or nftables rules
    • Application of configuration to WireGuard by Wg Gen Web itself

    TODO

    • Multi-user support behind Authelia (suggestions / thoughts are welcome)
    • Send configs by email to client

    Need Help

    • Join us on Discord
    • Create an issue

    Application stack

    License
