    Wg Gen Web

    Simple Web based configuration generator for WireGuard.


    Go Report Card Gitlab CI / CD

    Whay another one ?

    All WireGuard UI implementations are trying to manage the service by applying configurations and creating network rules. This implementation only generate configuration and its up to you to create network rules and apply configuration to WireGuard. For example by monituring generated directory with inotifywait.

    The goal is to run Wg Gen Web in a container and WireGuard on host system.

    Features

    • Self-serve and web based
    • Automatically select IP from networks chosen for client
    • QR-Code for convenient mobile client configuration
    • Enable / Disable client
    • Generation of wg0.conf after any modification
    • Dockerized

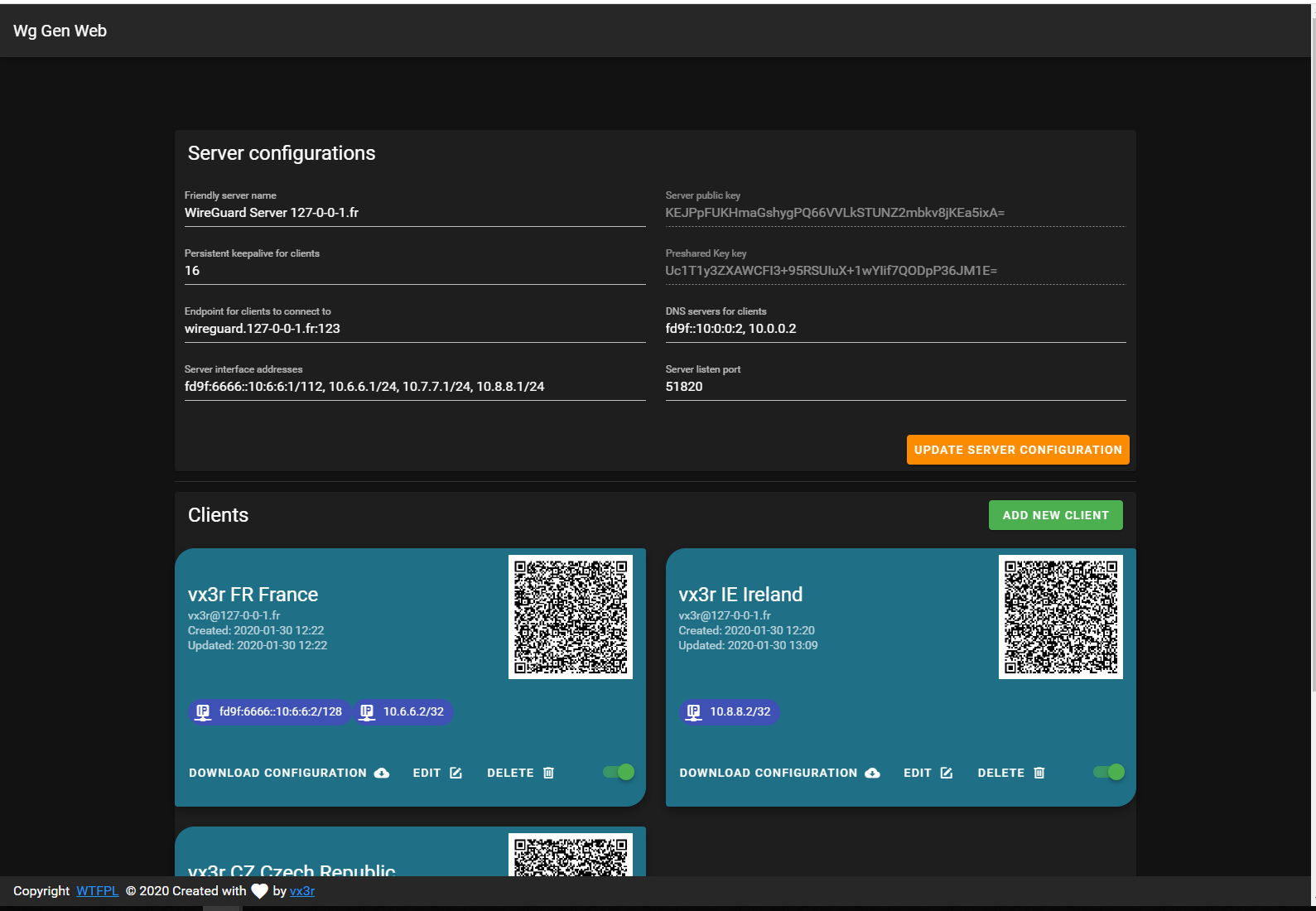

    • Pretty cool look Screenshot

    Running

    The easiest way to run Wg Gen Web is using the container image

    docker run --rm -it -v /tmp/wireguard:/data -p 8080:8080 -e "WG_CONF_DIR=/data" vx3r/wg-gen-web:latest

    Docker compose snipped

    version: '3.6'
    services:
      wg-gen-web:
        image: vx3r/wg-gen-web:latest
        container_name: wg-gen-web
        restart: unless-stopped
        expose:
          - "8080/tcp"
        environment:
          - WG_CONF_DIR=/data
          - WG_INTERFACE_NAME=wg0.conf
        volumes:
          - /mnt/raid-lv-data/docker-persistent-data/wg-gen-web:/data

    How to trigger WireGuard on host

    Before going further create a symlink from docker mounted volume to /etc/wireguard

    ln -s /mnt/raid-lv-data/docker-persistent-data/wg-gen-web /etc/wireguard

    Example with systemd

    Using systemd.path monitor for directory changes see systemd doc

    # /etc/systemd/system/wg-gen-web.path
    [Unit]
    Description=Watch /etc/wireguard for changes

    [Path]
    PathModified=/etc/wireguard

    [Install]
    WantedBy=multi-user.target

    This .path will activate unit file with the same name

    # /etc/systemd/system/wg-gen-web.service
    [Unit]
    Description=Restart WireGuard
    After=network.target

    [Service]
    Type=oneshot
    ExecStart=/usr/bin/systemctl restart wg-quick@wg0.service

    [Install]
    WantedBy=multi-user.target

    Which will restart WireGuard service

    Example with inotifywait

    Using whatever init system create a daemon running this script

    #!/bin/sh
    while inotifywait -e modify -e create /etc/wireguard; do
      wg-quick down wg0
      wg-quick up wg0
    done

    What is out of scope

    • Generation or application of any iptables or nftables rules
    • Application of configuration to WireGuard

    TODO

    • Multi-user support behind Authelia (suggestions / thoughts are welcome)
    • Send configs by email to client
